Motor Control Solution for Embedded Electric Drives

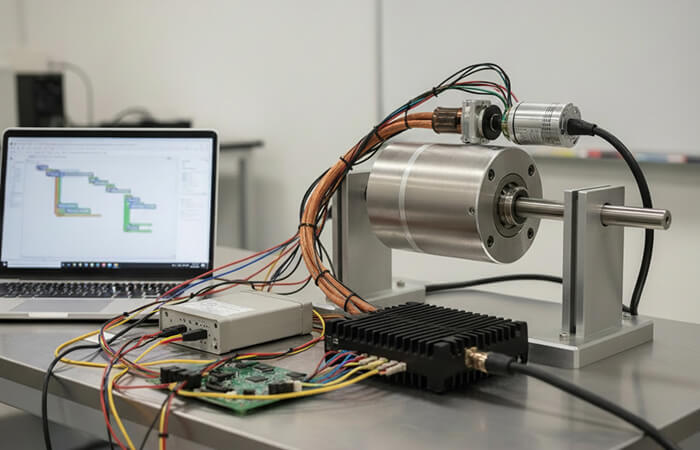

Overview
The Motor Control Solution is a collection of parameterized Matlab/Simulink models designed for functional modeling and control of electric machines. It supports both motor and inverter modeling, as well as field-oriented control (FOC) strategies. Direct integration with the μVOS real-time operating system is achieved through a specialized code generation toolbox, producing efficient, instrumented embedded code suitable for resource-constrained controllers.
The models derive control parameters from the physical properties of the motor and power electronics, eliminating the need for rotor position sensors. With support for real-time diagnostics, self-calibration, and soft-start mechanisms, the solution ensures high efficiency, robustness, and rapid deployment across automotive, industrial, and robotic systems.
Core Features
- Matlab/Simulink-based simulation and control design
- Automatic code generation for μVOS-compliant targets
- Parameterization from motor and inverter physical characteristics
- Support for fixed-point arithmetic microcontrollers
- Sensorless rotor position estimation
- Dynamic torque and speed control
- Real-time current regulation
- Soft-start and protection mechanisms
- Direct deployment to μVOS microkernel
- Deterministic control behavior with minimal runtime overhead
- CAN and LIN network stack support with AUTOSAR Network Management
- Instrumentation and data logging hooks
- PC-based tuning, calibration, and diagnostics interface
- Live parameter adjustment and data acquisition
- Support for simulation and validation workflows
Technical Benefits
Feature |
Benefit |
|---|---|
| Autocoding | Eliminates manual firmware development-deployment from model to hardware in a single step |
| Autotuning | Control gains and filters derived from system physical models |
| Sensor Self-Calibration | Adapts to hardware variations during initial operation |
| μVOS Compatibility | Enables real-time execution with minimal resource requirements |
| Automotive Networking | Built-in CAN/LIN stack with support for standard diagnostic and management protocols |
Application Areas
The solution has been successfully deployed in a range of embedded motion control systems, including:
- Actuator drivers and position controllers
- Expansion and HVAC valve controllers
- Electric compressors and pumps
- Integrated smart sensor-actuator units
